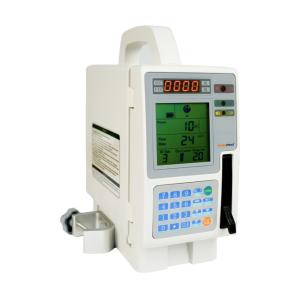

9999ml Volumetric Infusion Pump Curvilinear Peristaltic

  • 1
  • 2

Brand Name : SUCE

Model Number : ZNB-XK

Place of Origin : Shanghai, China

Packaging Details : carton box

Price : $325-395.00/pc

Certification : CE,ISO13485

MOQ : 1PC

Payment Terms : T/T, Western Union,Payoneer

Supply Ability : 10000pcs/month

Delivery Time : about 5 days

Type : basic medical device

Instrument classification : Class II

Pumping Mechanism : Curvilinear peristaltic

Flow Rate : 1-1300 ml/h (1-1000 ml/h in 0.1 ml/h increments)

Purge, Bolus : Purge when pump stops, bolus when pump starts Rate at 700 mh/h

Accuracy : Universal IV set: ±5%

Volume : 1-9999 ml

Infusion Modes : ml/h, drop/min, time-based

Size : 233*146*269 mm

Weight : 3 kgs

Port : Shanghai

Contact Now

High quality hot selling Volumetric Infusion Pump ZNB-XK

Specifications

9999ml Volumetric Infusion Pump Curvilinear Peristaltic

User-friendly design

  • LCD screen and LED display enables user to observe pump

work from a distance.

  • International standard all numeric key input, quick, accurate

and convenienct.

  • Three work modes.
  • Auto-lock tubing clamp.
  • The light will be on when the pump door is opened, which

can avoid a wrong installation of IV sets in the low level of light.

Safety design

  • Watch dog design make sure the pump will stop working

when software program has problem.

  • The TPU spring panel can reduce the tubes squeezing injury.
  • It can test battery temperature and prevent the battery

has high temperature.

  • It will stop the pump when it test the motor work improperly.
  • Key lock features can prevent misoperation when pump is working.

Model

ZNB-XK

Pumping Mechanism

Curvilinear peristaltic

IV Sets

Compatible with IV sets of any standard (3.8mm±0.2mm, δ<0.5mm)

Flow Rate

1-1300 ml/h (1-1000 ml/h in 0.1 ml/h increments)

Purge, Bolus

Purge when pump stops, bolus when pump starts

Rate at 700 mh/h

Accuracy

Universal IV set: ±5%

Volume

1-9999 ml

Infusion Modes

ml/h, drop/min, time-based

KVO Rate

1-5 ml/h, adjustable

Alarms

Occlusion, air-in-line, door open, end program, low battery,

unattended pump after startup, system malfunction

Additional Features

Real-time shift totals, on-screen hourly totals,

automatic power switching, mute button, purge, bolus

Air-in-Line Detection

Ultrasonic detector

Infusion Management System

Optional

Drop Sensor

Optional

Power Supply, AC

230 V, 50 Hz

Battery

9.6±1.6 V, rechargeable

Battery Life

3 hours at 30 ml/h

Working Temperature

10-30℃

Relative Humidity

30-75%

Atmospheric Pressure

860-1060hpa

Size

233*146*269 mm

Weight

3 kgs

Safety Classification

Class Ⅰ, type CF
